High Quality and High Efficiency YS-XD160--Die Casting X Ray Inspection Machine

Thông tin chi tiết sản phẩm

Nguồn gốc: Quảng Đông

Hàng hiệu: YUSH

Chứng nhận: CE

Số mô hình: YS-XD160

Điều khoản thanh toán & vận chuyển

Số lượng đặt hàng tối thiểu: 1

Giá bán: USD86000

chi tiết đóng gói: hộp gỗ

Thời gian giao hàng: 20 ngày làm việc

Điều khoản thanh toán: L/C, D/A, D/P, T/T, Liên minh phương Tây

Khả năng cung cấp: 1000

Nhận được giá tốt nhất
Làm nổi bật:

die casting X-ray inspection machine

,

PCB depaneling X-ray machine

,

high efficiency X-ray inspection

Tổng công suất:
Tối đa 1,3KW
Điện áp ống:
60~160KV
Dòng ống:
0,2 ~ 5,0mA
tiêu cự:
0,5mm
Tổng công suất:
Tối đa 1,3KW
Điện áp ống:
60~160KV
Dòng ống:
0,2 ~ 5,0mA
tiêu cự:
0,5mm
High Quality and High Efficiency YS-XD160--Die Casting X Ray Inspection Machine
High Quality and High Efficiency YS-XD160 Die Casting X Ray Inspection Machine
The YS-XD160 Die Casting X Ray Inspection Machine provides high-quality inspection capabilities for various metal castings with advanced imaging technology and ergonomic design.
Key Features
  • Clearly detects defects such as sand holes and cracks inside aluminum castings
  • Easy operation with quick setup (5-10 minutes for new product detection standards)
  • Programmable, measurable, and image-saving functions based on ergonomics
  • Safety interlock system prevents operation when doors are open
  • 360° rotating and moving multi-functional load platform
  • Versatile, customizable tooling operations
  • C-type swing arm six-axis linkage detection method with no dead angle detection
  • Real-time dynamic imaging and monitoring during inspection
  • Multi-panel modular observation point setting

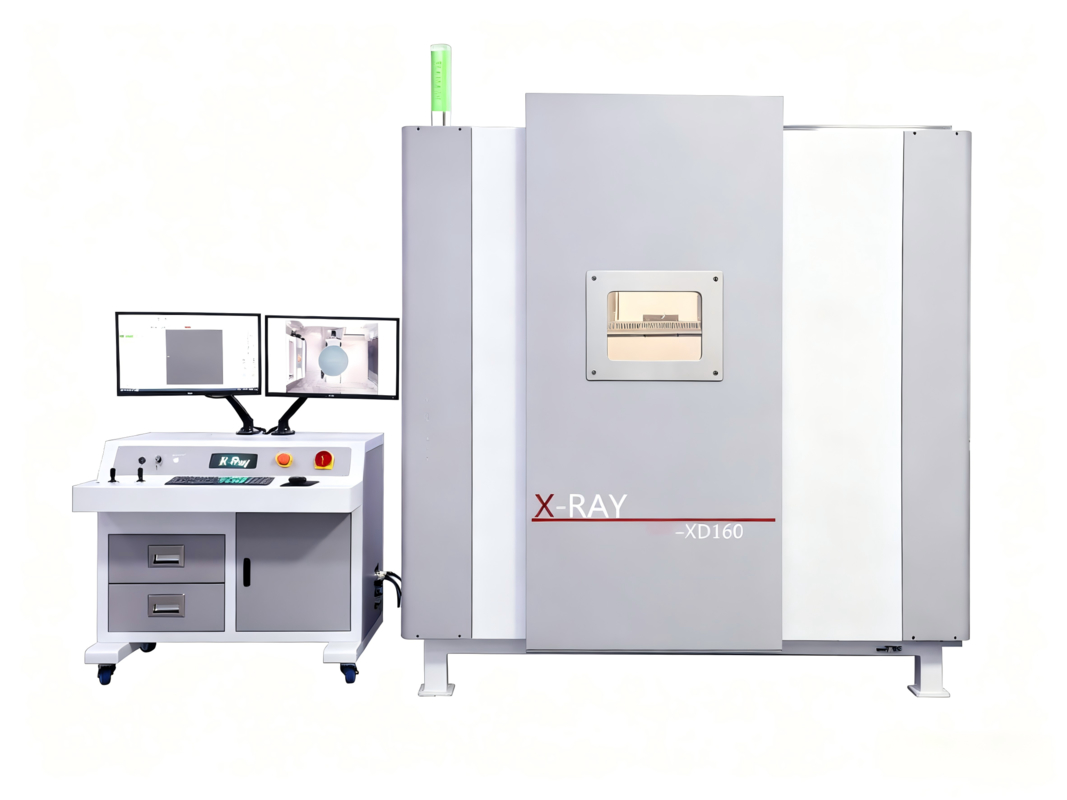

High Quality and High Efficiency YS-XD160--Die Casting X Ray Inspection Machine 0
The equipment is primarily used for inspecting aluminum castings, iron castings, automotive parts, hardware, and refractory materials. Utilizing Automated Optical Inspection technology with X-ray fluoroscopy, it converts visible light images, acquires image information through flat panel detectors, and provides high-definition imaging with measurable dimensions, data storage, and automatic programming for step detection.
Technical Specifications
X-ray leakage amount ≤1usv/h
Dimension L2030×W1600×W2100mm
Stage size φ500mm
Imaging area 433.7mm*433.7mm
Resolution 2816*2816/ 3.24Lp/mm 15fps
Max Tilt Angle ±30°
