Nhà > các sản phẩm > PCB Depaneling Máy > Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD

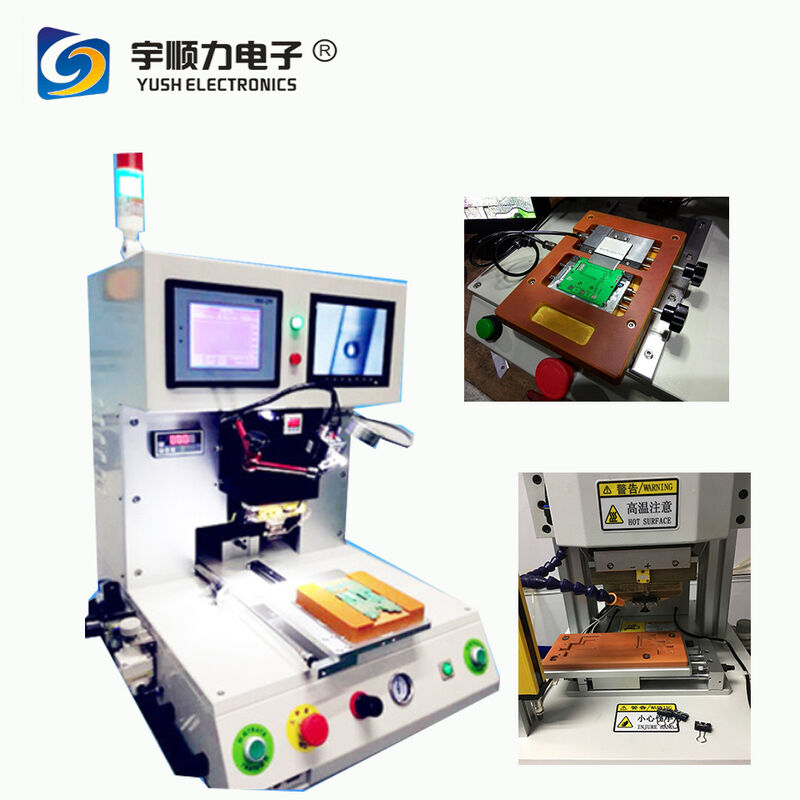

Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD

Thông tin chi tiết sản phẩm

Nguồn gốc: Trung Quốc

Hàng hiệu: YUSH

Số mô hình: YSPC-1A

Điều khoản thanh toán & vận chuyển

Số lượng đặt hàng tối thiểu: 1 bộ

Giá bán: $10,000 / set

Nhận được giá tốt nhất
Làm nổi bật:

Double worktable pulse bonding machine

,

Hot bar soldering machine for FPC

,

LCD bonding machine with warranty

Cân nặng:
110 kg
Diện tích làm việc tối đa:
200mm x 260mm
Vật cố định:
1 bộ
Áp suất không khí làm việc:
0,45-0,7Mpa
Cài đặt nhiệt độ:
20-500°C
độ chính xác nhiệt độ:
±2°C
thời gian nhấn mạnh:
1-99 s
áp lực đầu:
0,1-0,6 MPa
Điện áp:
110V/220V
Kích cỡ:
620mm * 690mm * 570mm
Thành phần cốt lõi:
Động cơ
Tốc độ sưởi ấm:
Nhanh
Độ ồn:
Thấp
Mức độ rung:
Nhỏ bé
Vật liệu đầu hàn:
hợp kim molypden
Cân nặng:
110 kg
Diện tích làm việc tối đa:
200mm x 260mm
Vật cố định:
1 bộ
Áp suất không khí làm việc:
0,45-0,7Mpa
Cài đặt nhiệt độ:
20-500°C
độ chính xác nhiệt độ:
±2°C
thời gian nhấn mạnh:
1-99 s
áp lực đầu:
0,1-0,6 MPa
Điện áp:
110V/220V
Kích cỡ:
620mm * 690mm * 570mm
Thành phần cốt lõi:
Động cơ
Tốc độ sưởi ấm:
Nhanh
Độ ồn:
Thấp
Mức độ rung:
Nhỏ bé
Vật liệu đầu hàn:
hợp kim molypden
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Double Worktable Pulse Bonding Hot Bar Soldering Machine for FPC/LCD
Professional Hot Bar Soldering Solution
This double worktable pulse bonding hot bar soldering machine is engineered for precision bonding of challenging components and materials. It delivers exceptional performance for flexible circuits, ribbon cables, wires, flex-to-PCB, flex-to-LCD applications, and thermo compression bonding of gold ribbon across telecommunications, computer, automotive, display, and various industrial sectors.
Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD 0 Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD 1
Advanced Technical Features
  • Molybdenum alloy head ensures temperature stability, fast heating speed, and extended service life
  • Adjustable soldering head level for uniform part assembly processing
  • Digital temperature control display for easy and clear operation
  • Digital pressure meter with preset pressure range capability
  • Specialized welding materials for superior bonding performance
  • Precise PID control with phase angle instead of pulse drive
  • Minimal vibration, low noise operation, and no voltage fluctuation
  • Molybdenum alloy soldering head provides faster warming, excellent heat transfer coefficient, and superior wear resistance compared to traditional titanium alloy
